Covered sunspot data

Christophe LETELLIER
29/02/2008
JPG - 5.4 kb
Rudolf Wolf (1816-1893)

Taking Schwabe’s discovery seriously, Johann Rudolph Wolf (1816-1893), director of the Zurich Observatory, undertook a reconstruction of data before 1850 in order to verify, or test, Schwabe’s hypothesis. In order to normalize observations taken by different astronomers using a variety of techniques, Wolf introduced the relative number of sunspots at the solar surface:

N_s = k \left( \dis N_t \, + \, 10 \times N_g \right)

where N_t is the number of individual sunspots, N_g is the number of groups of sunspots (which contain on average 10 sunspots), and k is a normalization constant (``fudge factor’’) that varies from one observer to another (by definition, k=1 for Wolf’s observations). Sunspot groups were introduced because it is often difficult to resolve individual sunspots within a cluster of sunspots. Wolf succeeded in reconstructing a relatively believable variation in the number of sunspots back to 1755. The cycle that developed between 1755-1766 is taken by convention as ``cycle \# 1’’, the others are counted from there. Cycle \# 23 began January 1, 2000. The 20 or so solar cycles known today are studied quantitatively thanks to the Wolf index (Fig.1) [1].

PNG - 68.9 kb

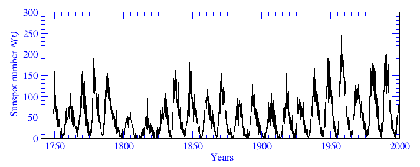

Fig.1 Sunspot numbers {N(t)}
JPG - 4 kb
George Hale (1868-1938)

In 1908 George Ellery Hale (1868-1938), of the Mount Wilson Observatory in California, discovered that sunspots were the sites of intense magnetic fields and measured the field strengths with a spectrograph of his own invention [2]: the magnetic field was detected by the doubling and tripling (splitting) of rare spectral lines (Zeeman effect). These strong fields are considered to be responsible for the suppression of convective motion. There is a strong correlation between the number of sunspots and solar activity. Thus, minimum activity is associated with an absence of sunspots: movements are not sufficiently violent to produce magnetic fields strong enough to block convective motion. Maximum activity produces numerous convective blockages and, as a result, a large number of sunspots.

Another discovery by Hale and his co-workers is that there is a reversal every other cycle [3]: ``After the sun-spot minimum, which occurred in December 1912, we found, to our surprise, that the polarity of the members of bipolar groups was opposite to that observed before the minimum. This sudden change was so remarkable that it was feared some observational error had been made. The results have been checked repeatedly by different observers, however, and in all cases the conclusion had been the same.’’ This means that we need an order-2 symmetry to take into account this reversal. In this case the square of the symmetry operator has to be equal to the identity matrix. When inverted, it can then be used to obtain a cover, that is, a phase portrait with a rotation

PNG - 57.3 kb
Ronald Bracewell (1921-)

symmetry. The rotation symmetry takes into account the inversion of the magnetic field at each solar cycle. When the coordinate transformation \Phi is used, the singularity around which the symmetry is organized is implicitly located at the origin of the phase space. This means that we would introduce a symmetry with respect to the origin of the phase space. This is what Bracewell did by introducing a sign change at each minimum of the sunspot cycles [4]. This is not the only possibility [5]. In fact, covering the sunspot data as Bracewell suggested must lead to two disconneted attractors (Fig. 2). To joint them, some discontinuities were introduced by hand. This explains why no global model were obtained from the Bracewell index.

PNG - 26.7 kb

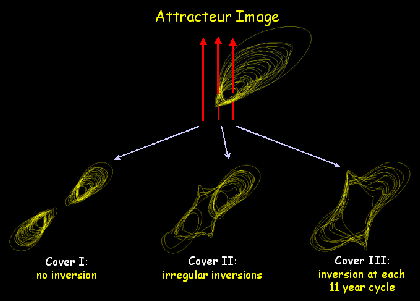

Fig. 2 Different covers of the sunspot attractor

It has been proved that the singularity can be displaced along the bisecting line of the plane u_1-u_2 by using the map


  \varphi =
  \left|
    \begin{array}{l}
      u_1 \mapsto u_1 + u_0 \\
      u_2 \mapsto u_2 + u_0 ,
    \end{array}
  \right.

Zip - 25.5 kb
Covered sunspot data

where u_0 defines the position of the singularity in the phase space reconstructed from the sunspot numbers. There are three possibilities. In the present case, it was shown that u_0=30 was a suitable choice [6]. The data here available are produce from the monthly averaged sunspot number (available on line). The covered data (Fig. 3) can be downloaded from this webpage. Do not forget that the sunspot numbers are not reliable before 1850 since reconstructed by hand by Rudolf Wolf from old observations.

PNG - 2.3 kb
Fig. 3 Covered sunspot data

A prediction of the 24th solar cycle was done from this data set [7] (65 \pm 16 on September-October 2012)and we were bold enough to attempt a prediction of the 25th (100 \pm 34 on January-February 2021) ! You can compare our predictions with those available today on the market on this site.

PNG - 4.2 kb
Fig. 4 24th and 25th cycle predictions

[1] The data here used can be downloaded from Nasa.

[2] G. E. Hale, On the Probable Existence of a magnetic field in sunspots, The Astrophysical Journal, 28, 315-343, 1908.

[3] G. E. Hale, F. Ellerman, S. B. Nicholson & A.H. Joy, The Magnetic Polarity of sun-spots, The Astrophysical Journal,49, 153-178, 1919.

[4] R. N. Bracewell, The sunspot number series, Nature, 171, 649-650, 1953.

[5] C. Letellier & R. Gilmore, Covering dynamical systems: Two-fold covers, Physical Review E, 63, 016206, 2001.

[6] C. Letellier, J. Maquet, L. A. Aguirre & R. Gilmore, Evidence for low dimensional chaos in the sunspot cycles, Astronomy & Astrophysics, 449, 379-387, 2006.

[7] L. A. Aguirre, C. Letellier & J. Maquet, Forecasting the time series of sunspot numbers, Solar Physics, 249 (1), 103-120, 2008.
