1975 : A 2D predator-prey map

Christophe LETELLIER

In 1975, John Rex Beddington, C. A. Free and John Lawton proposed a map governing two interacting populations, preys and predators : [1]

PNG - 2.1 ko
JPG - 18.3 ko
John Rex Beddington

where xn designates the preys and yn the predators. This two-dimensional discrete map considers populations with non-overlapping generations and was based on Nicholson-Bailey host-parasite equations to describe the interactions between a population of herbivorous arthropods --- invertebrate animal having an exoskeleton --- and their insect parasitoïds. [2] Beddington and coworkers observed some chaotic behaviors as the one plotted in Fig. 1 with the parameter values

PNG - 1 ko

This map is most likely one of the very first to be chaotic and published.

JPG - 51.4 ko

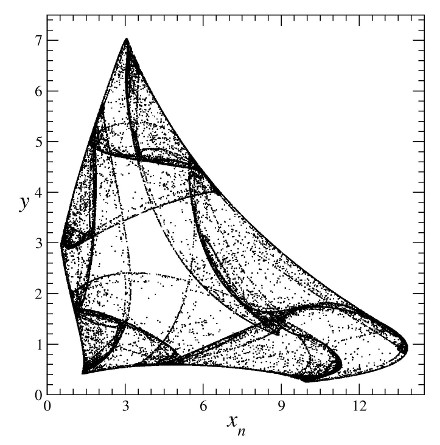

Fig. 1. Chaotic behavior produced by the 2D predator-prey map.

[1] J. R. Beddington, C. A. Free & J. H. Lawton, Dynamic complexity in predator-prey models framed in difference equations, Nature, 255, 58-60, 1975. Online

[2] A. J. Nicholson & V. A. Bailey, The balance of animal populations, Proceedings of the Zoological Society of London, 105 (3), 551-598, 1935. Online
